Aquabox 1.0 AC

The AQUABOX 1.0 (RO) vending machine is a standalone water purification and water dispensing system. The machine fills from 1 to 19 liters bottles with ambient water.

Water filtration module with reverse osmosis membrane inside provides removal of up to 99.8% of all impurities, adjustment of water pH, remineralization, taste, and odor improvement and UV disinfection.

This model provides the following payment
methods: coin acceptor*, bill acceptor*, Pay Pass*, and QR reader.

The telemetry unit is the key component. It is equipped multifunction controller with GSM/GPSR module. It provides control of the reverse osmosis system operation, blocking the operation in emergency situations, display of warning and emergency messages, sending notifications of emergency situations by SMS.

Key features:

• Flow rate 250 liters per hour
• State-of-the-art filtration process: sediment filtration, carbon filtration, UV disinfection
• Full remote control thanks to the IoT controller
• Fills bottles from 1 to 19 liters
• Capable of cash and cashless payment methods
• CE marked and confirmed to be safe by EC New Approach Directives

Purification technology:

• Sediment Filtration
• Activated Carbon Filtration
• Anti-Scale Filtration
• Reverse Osmosis Membrane Filtration
• Mineralization Filter to Optimize pH levels and Enhance Mineral Content
• UV Disinfection

Vending device management system
VDMS — means full online control of your system feature. It helps you to track:

• Water sales statistics
• Monitoring polular days, water sales, locations and more useful stats
• Fault tracking and dremote troublehooting
• Curent statis

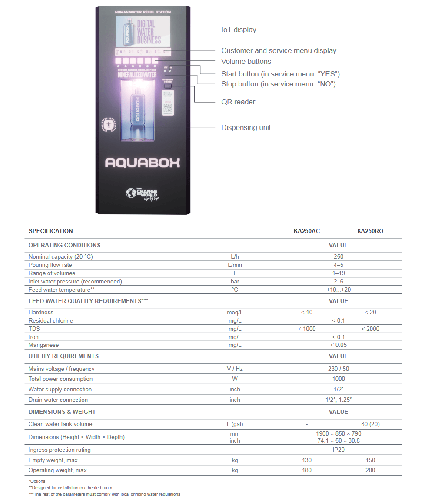

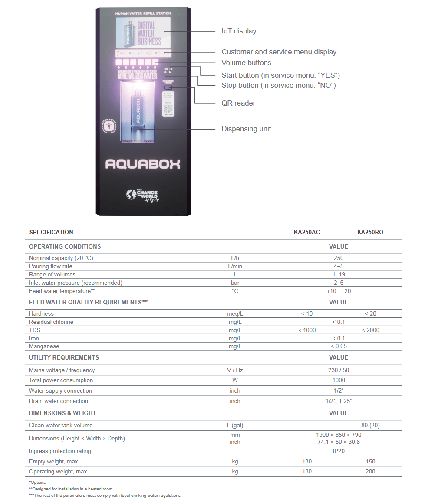

Components:

1. Metal housing
2. Assembled water purification system
3. Controller with integrated GSM/GPRS module
4. Dispensing unit
5. QR reader
6. Remineralization unit
7. IOT display
8. Drain pump

Options:

• Unattended Payment Terminal*
• Coin acceptor*
• Bill acceptor*
• Thermostabilization and housing heating
• Individual branding

*available firmware: €, $; zł

Technical specifications

• Nominal capacity for purified water — 250 L/h
• Pouring flow rate — 4-5 L/min
• Range of volumes — 1-19 L
• Inlet water pressure (recommended) — 2..6 bar

Feed water requirements*

• Hardness — ≤ 1000** ppm CaCO3
• TDS — ≤ 2000** mg/L
• Residual chlorine — ≤ 0.1 mg/L
• Iron — ≤ 0.1 mg/L
• Manganese — ≤ 0.05 mg/L
• Feed water temperature — 10..20 °C

* The rest of the parameters must comply with local drinking water regulations
** the requirements are relevant for machines equipped with a RO membrane

Utility requirements:

• Mains voltage/frequency — 230/50 V/Hz
• Total power consumption — 1000 W
• Water supply connection — ½ inch
• Drain water connection — ½, 1¼ inch
